Katas for Hackers: Sharpening your digital Martial Arts

The importance of Katas

In certain Martial Arts traditions there exists training forms known as Katas. They are a detailed set of choreographed actions that you perform repeatedly. One of the purposes of performing these scripted movements, is to train your body to react seamlessly in common patterns. Of course, you need to be able to improvise. But enough cannot be said about the importance of drilling on the basics (and not so basics). As my instructor puts it "Flash may impress spectators, but fundamentals win fights"

These Katas are designed with a particular scenario in mind and are often performed by ones self. Part of the exercise is to imagine the movements of your imagined opponent. Skilled Martial Artists can study the movements of a Kata and “read” what the opponent would be doing in each step as well. In this way it is a bit like deducing both sides of a telephone conversation from only hearing one side. The same idea can be applied to practicing common attack patterns for Red Teams as well. To show how one might use this idea in practice I will be using both Metasploitable3 (M3) and Metasploitable2 (M2). Below are some ideas on attack patterns to practice. The grizzly details of the exact commands will be left out for the most part since these are highly dependent on your style.

Kata x00 – Enumerate the target area

Even if you only have one machine and you know exactly every port and service running. Enumerate it again. And Again. Enumerate your target VMs with 4-5 of your favorite Nmap Scans working from quickest/Least info to slower/more comprehensive. If you want to add a little more realism to this training you can use python + vagrant provisions to randomly start or stop certain services on the target VM.

Scanning Katas follow the principle of 'know thy enemy and know thy self'

Kata x10 – Weak creds to DB User Access

This is a simple Kata that should be familiar to anyone with Red Team Experience. First setup a M2 VM (This is the Linux VM version) and your Attacker machine. Now on the attack machine start a credential scan using the top default user name and service passwords (unhashed). Once a set of credentials is recovered (postgres:postgres for example) use an exploit to get a command shell (reverse or not is up to you, but I prefer reverse). As with Kata 0 you can add more realism by adding a vagrant provision which randomly selects a new postgres password from a set of passwords. I like to use the top 100k password list to select the password from, then I use a smaller subset (top 10k or so) list to start my cred scan. Good password lists to practice can be found at https://github.com/danielmiessler/SecLists/tree/master/Passwords

Kata x1a – Unless you get extremely lucky the database will not be run as root, so this extends the Kata x10 exercise to include a local privilege escalation and instead return a root shell

Kata x1b – Extend the Kata x10 exercise to exfiltrate the contents of the Database

Kata x20 – SQLi to Web Admin

Another simple Kata that we see all over the place. Fire up M2 (or 3 if you prefer), and start a Vulnerable Web App. Inject an admin user which gives you full access to the chosen application. The exact method differs slightly based on the table structure of the vulnerable web app you choose to train against, so you may want to switch it up occasionally.

Kata x2a – Extend Kata x20 by using the web admin access to get the Web Server user’s level access to the system by uploading a Web Shell.

Kata x2b – Extend Kata x2a by using the Web User’s access and a local privilege escalation to get a root shell

Kata x30 – Exploit Network Service for Access

This is probably the Kata most people think of when they think of hacking into a box. Some vulnerable application is up and accepting traffic from the network. I switch up which services I train against based off of what I want to get out of my training session. Some popular choices are

• IRC
• FTP
• Java applications

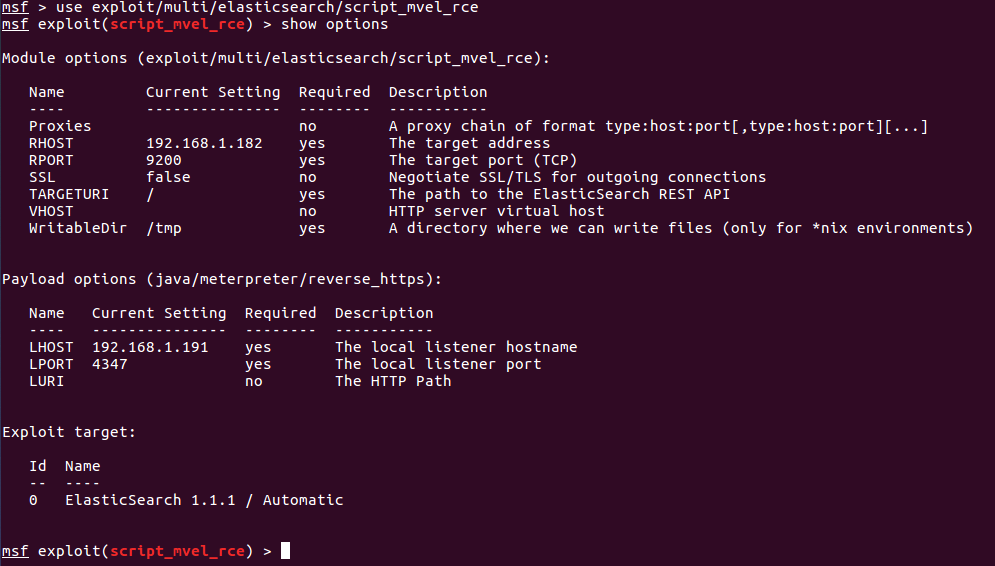

It is important to remember the details. Check the options during your Katas

As I mentioned in Kata 0, I will use M2 or M3 plus vagrant provisioners to start different combinations of services during different practice sessions

Kata x3a – Extend Kata x30 by using a local privilege escalation to return a root shell. This may not be required if the service you exploit was run as root.

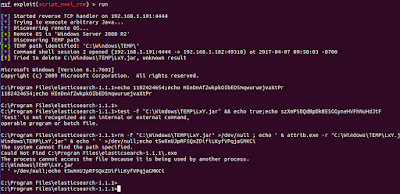

Exploiting a Network Service. Is there anything more hackeresque?

Kata x40 – Post Exploitation

This Kata extends x1*, x2*, and x3* by adding in post-exploitation steps. This again comes down to your personal preference but there are some fundamentals that should not be overlooked even if they are not part of your normal routine. First and foremost create a reliable persistence method! Then run through commands to determine pertinent facts about the compromised system.

Kata x4a - Gather running processes, logged on users, shares, known hosts, etc.

Kata x4b - Get list of interfaces

Kata x4c - Install Trusted Path Persistence

Kata x4d - Add Admin level User

Add a user that will blend in with the other user names



Kata x50 - Pivot to an internal network

This takes a bit more setup of the VM environment. First you need to install VirtualBox inside the guest. You will need to add a copy of the M2 VM to the newly installed VirtualBox manager (inside M3). I will call this VM M2b. Set the network setting to a host-only adapter. Once it is set, start the M2b VM. Now there exists a machine that you can only reach by pivoting through the M3 VM. This is analogous to accessing a development machine that is behind a VPN gateway or on a separate subnet.

I think the best way to view this is as several separate Katas, linked together with some special moves in the middle. First you enumerate the M3 VM (Kata x00). Then you perform Kata x3a which leaves you with a root shell on the first target. Next you perform Kata x4b which reveals the second network interface and IP, Now for the special moves that make this it’s own Kata: Use the root shell access and the information gathered to setup a pivot point on the M3 VM. Using this pivot, start back at the scanning Kata x00, but this time enumerate the M2b VM. Finally, use Kata x2b to get root access on M2b.



Conclusion

These Katas encapsulate all the fundamental skills required for a successful digital Martial Artist to hone their skills. Sure there are other necessary skills, not touched on (such as exploit development and modification, scripting, etc.). Much the same way that every move is not included in traditional Martial Arts Katas. Instead you should train on those skills individually and in a more focused manner. Finally, do not be afraid to create your own Kata variations. the key is to practice them consistently and fluidly. Focus the design of each on applying your strengths against your opponent's weaknesses.
